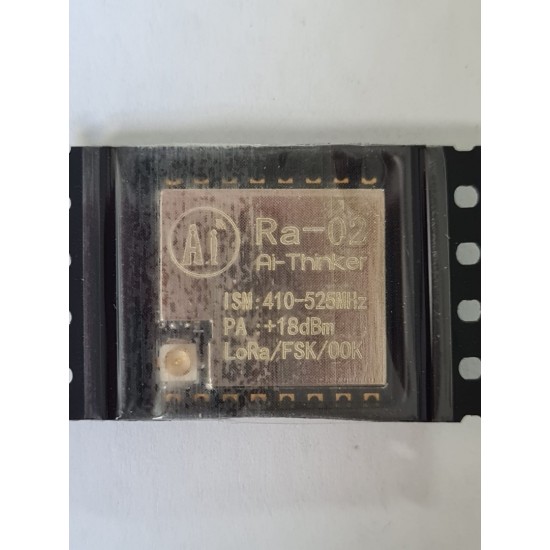

Ra-02 LoRa Module

Ra-02  LoRa Module

Module Model Ra-02

Package SMD-16

Size 17*16*(3.2 ± 0.1) mm

Interface SPI

Programmable bit rate UP to 300Kbps

Frequency Range 410-525 MHz< 90%RH

Antenna IPEX

Max Transmit Power 18±1 dBm

Power (Typical Values) 433MHz: TX:93mA RX:12.15mA Standby:1.6mA

470MHZ: TX:97mA RX:12.15mA Standby:1.5mA

Power Supply 2.5~3.7VˈTypical 3.3V

Operating Temperature -30 ć ~ 85 ć

Storage Environment 40 ć ~ 90 ć , < 90%RH

Weight 0.45g
